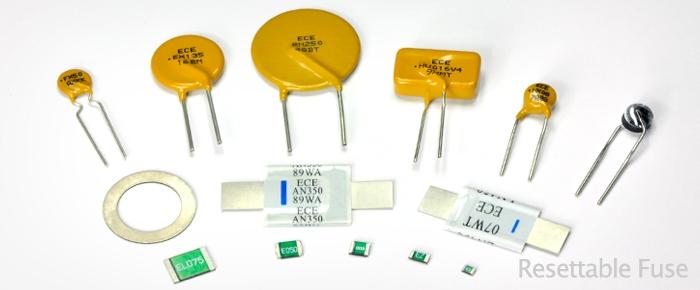

Resettable Fuse

Category Series Description Download
Radial Leaded ERFRA

Rated Voltage: 60VDC
Hold Current: 0.05~3.75A

Radial Leaded ERFRN

Rated Voltage: 90VDC
Hold Current: 0.1~3.75A

Radial Leaded ERFRB

Rated Voltage: 30VDC
Hold Current: 0.9~9A

Radial Leaded ERFBX

Rated Voltage: 16/30VDC
Hold Current: 0.75~2.5A

Radial Leaded ERFBU

Rated Voltage: 16/30VDC
Hold Current: 0.75~2.5A

Radial Leaded ERFHX

Rated Voltage: 60/250/600VDC
Hold Current: 0.08~0.18A

Radial Leaded ERFHU

Rated Voltage: 60/250/600VDC
Hold Current: 0.08~0.18A

Radial Leaded ERFRG

Rated Voltage: 16VDC
Hold Current: 2.5~14A

Radial Leaded ERFFX

Rated Voltage: 16/30VDC
Hold Current: 0.5~15A

Radial Leaded ERFFU

Rated Voltage: 16/30VDC
Hold Current: 0.5~15A

Radial Leaded ERFLU

Rated Voltage: 240VAC/DC
Hold Current: 0.05~2A

Radial Leaded ERFLX

Rated Voltage: 240VAC/DC
Hold Current: 0.05~2A

Radial Leaded ERFEX

Rated Voltage: 120VAC/DC
Hold Current: 0.1~3.75A

Radial Leaded ERFEU

Rated Voltage: 120VAC/DC
Hold Current: 0.1~3.75A

Radial Leaded ERFFT

Rated Voltage: 36VDC
Hold Current: 0.5~2.5A

Axial Leaded ERFAN

Rated Voltage: 15/30VDC
Hold Current: 1.2~4.2A

Axial Leaded ERFLN

Rated Voltage: 15/20VDC
Hold Current: 1.9~7.3A

Axial Leaded ERFTN

Rated Voltage: 24VDC
Hold Current: 0.7~3.4A

Axial Leaded ERFAD

Rated Voltage: On Request
Hold Current: On Request

Axial Leaded ERFRLN

Lower Resistance
Rated Voltage: 6VDC
Hold Current: 1.4~4.5A

Surface Mount ERFSL

Dimension:2920
Rated Voltage: 6~60VDC
Hold Current: 0.3~3A

Surface Mount ERFSD

Dimension: 1812
Rated Voltage: 6~60VDC
Hold Current: 0.1~3A

Surface Mount ERFSM

Dimension: 1210
Rated Voltage: 6~60VDC
Hold Current: 0.05~2.00A

Surface Mount ERFSN

Dimension: 1206
Rated Voltage: 6~60VDC
Hold Current: 0.05~2A

Surface Mount ERFSR

Dimension: 0805
Rated Voltage: 6~15VDC
Hold Current: 0.1~1A

Surface Mount ERFSS

Dimension: 0603
Rated Voltage: 9~15VDC
Hold Current: 0.05~0.2A

Surface Mount ERFRSD

Lower Resistance
Dimension: 1812
Rated Voltage: 6VDC
Hold Current: 1.4~3.7A

Surface Mount ERFRSM

Lower Resistance
Dimension: 1210
Rated Voltage: 6VDC
Hold Current: 1.75~3.5A

Surface Mount ERFRSN

Lower Resistance
Dimension: 1206
Rated Voltage: 6VDC
Hold Current: 0.5~2A

Surface Mount ERFRSR

Lower Resistance
Dimension: 0805
Rated Voltage: 6VDC
Hold Current: 0.75~1.5A

Surface Mount ERFRSS

Lower Resistance
Dimension: 0603
Rated Voltage: 6~9VDC
Hold Current: 0.25~0.75A
